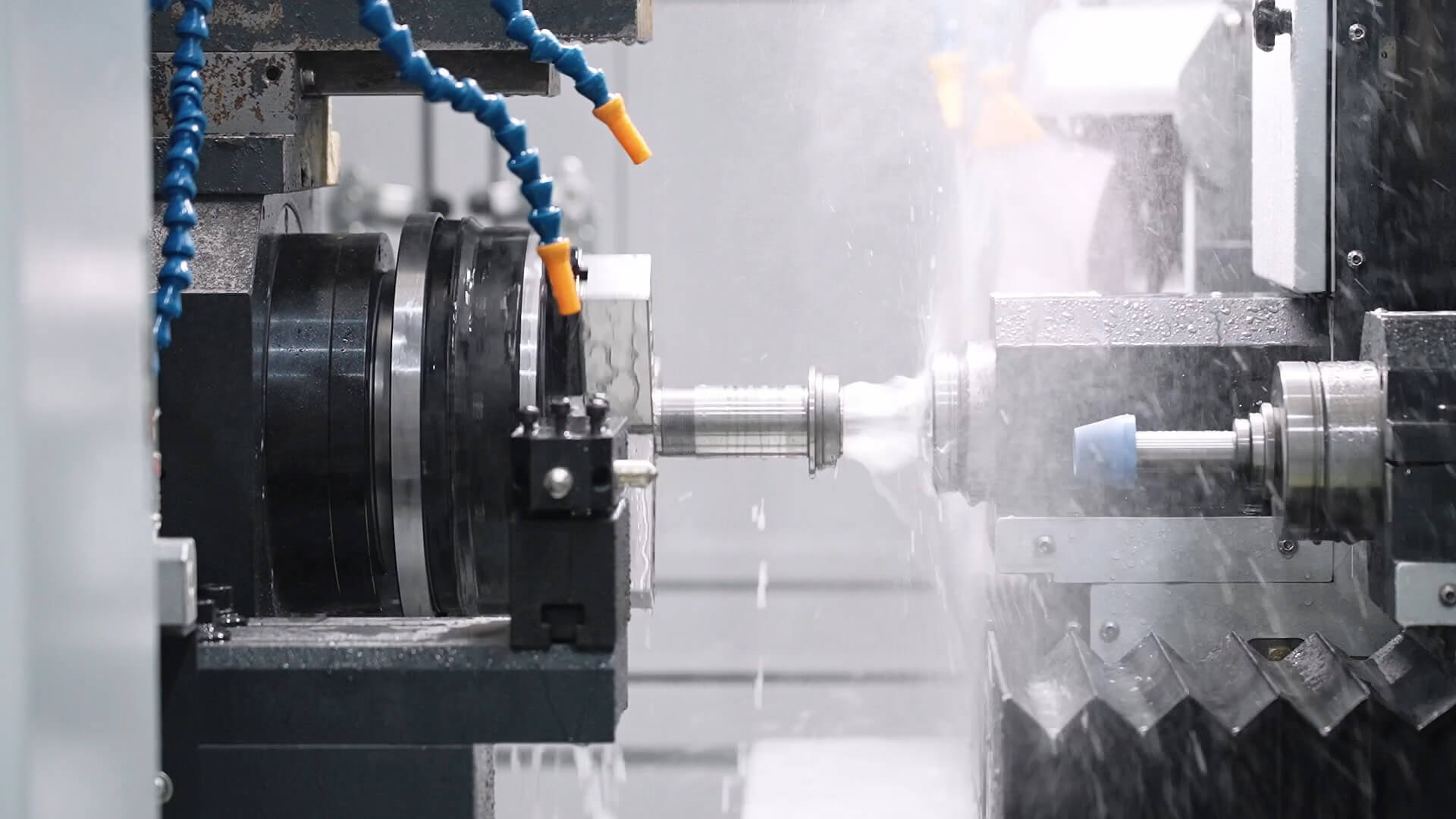

External & Internal Grinding Wheel
End Face Grinding Head
Fully Enclosed Protective Cover
Optional Dual-Axis Internal Grinding Wheel & One External Grinding Wheel
4~320mm
200mm
435mm
400mm
FANUC/0i-TF
30L
260L
0~1000rpm
10M/min/350mm
0.0001mm
-5°~+15°
10M/min
345+200mm
0.0001mm
1100mm
0.75Kw(1HP)
0.18Kw(1/4 HP)
X:1.2 Kw/Y:1.6 Kw/Z:1.2Kw
4HP
2.2·4P(3HP)
4L
3500*2150*2200 mm
5500kg
CNC controller
Standard water tank with a rate of 120L / minn-capacity 16L excluding filter unit
Automatic sensing and measuring device for transverse outer diameter of grinding wheel spindle and anti-collision device (electric value)
Trigonal dresser × 1 / diamond dresser × 3
Grease-type grinding wheel electric spindle within 10,000~60,000rpm
Full-covered shield
Oil feeder of self-lubrication system
LED light for internal operating area
Operating caution light
Basic fittings required for equipment installation and positioning
Adjusting tools & tool kit
Circuit diagram
Electrical box exchanger
Operation Manual & Detailed List of Parts
Hand-operated chuck 7” three-jaw power type
Electromagnetic chip remover
Tape-type chip remover
Waste oil mist recovery system
Inner diameter measuring device
Diamond roller dressing mechanism
Dressing sensing system
Soft-jaw turning unit
